Procedure 2: Set States attributed to the Dependent and Independent Variables

For both of the nodes stamped to the canvas, representing a single dependent variable or a single independent variable, there is the same states of Yes \ No (i.e. both nodes only have two possible, string based outcomes). It follows that each of the nodes needs to have the Yes \ No states set.

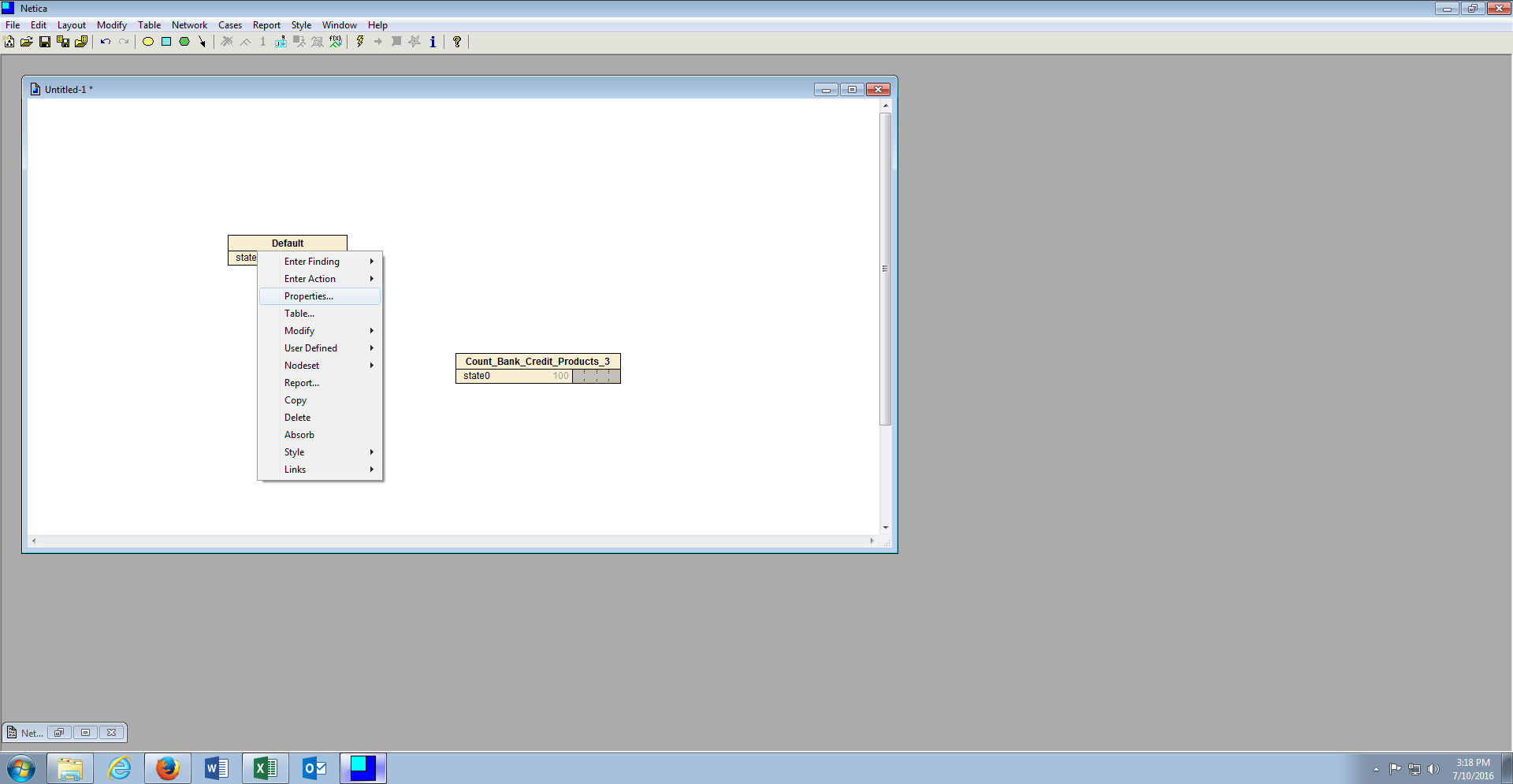

To set the states of a node, right click on the node and select properties, in this case right click on the Default node (the dependent variable):

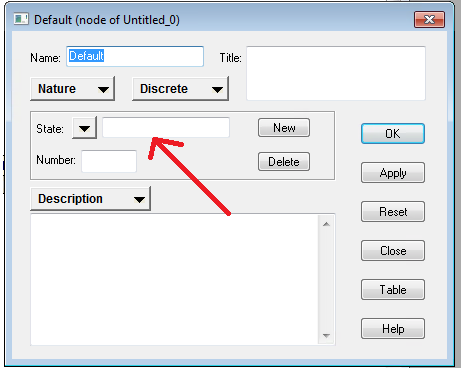

The properties window will open which is the same windows used to name the node. Focussing attention towards the centre of the window, there is an entry box titled State:

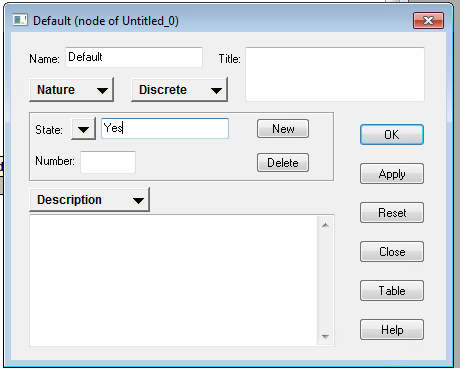

Type the name of the first state, which would be Yes:

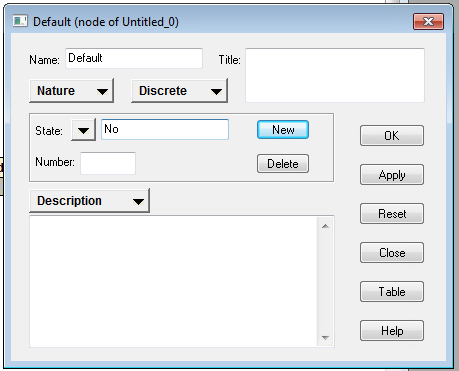

Then click New to commit the Yes state, proceeding to create the No state:

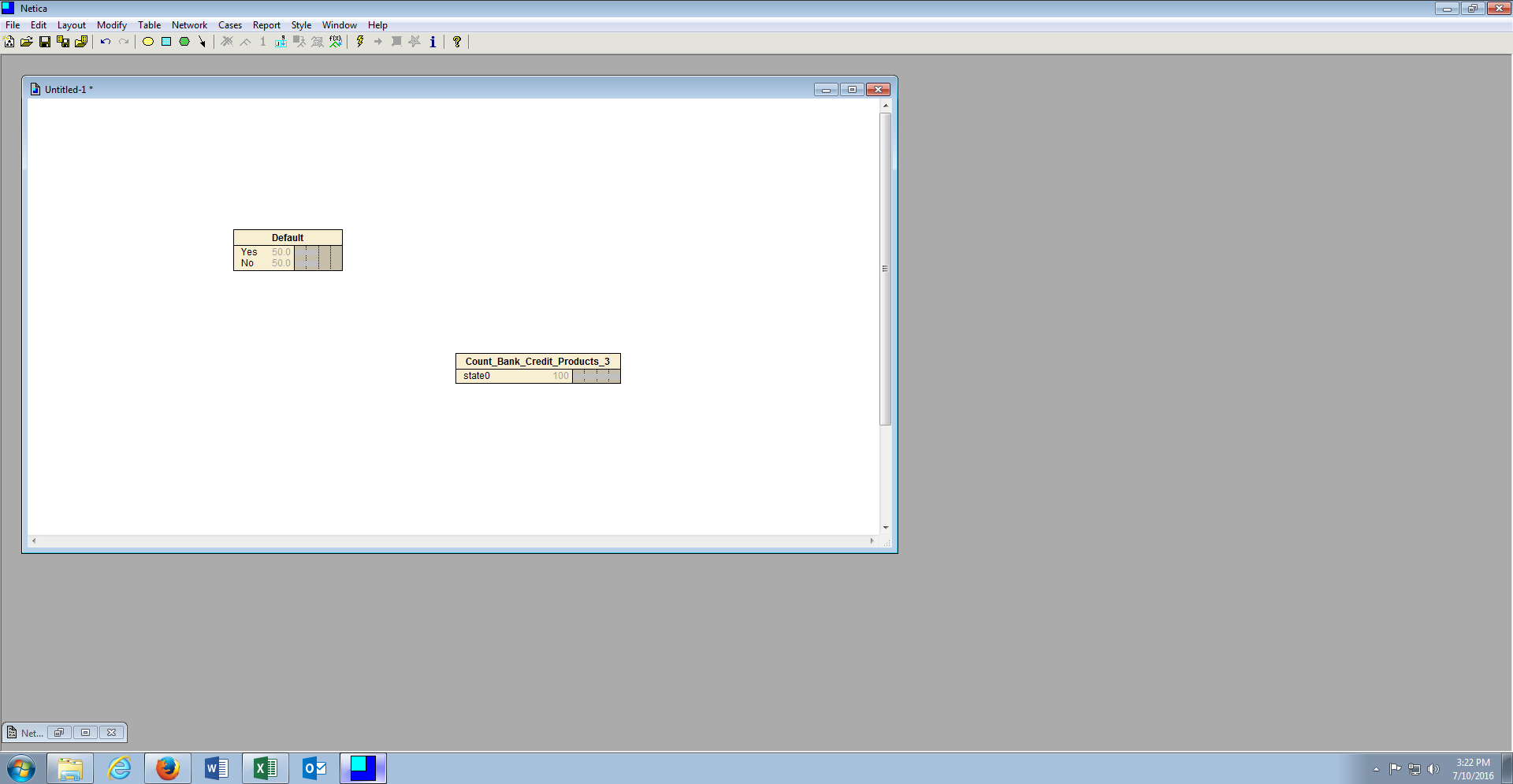

Click OK to commit both states to the node, after which the Node will be updated to reflect both states with an even probability:

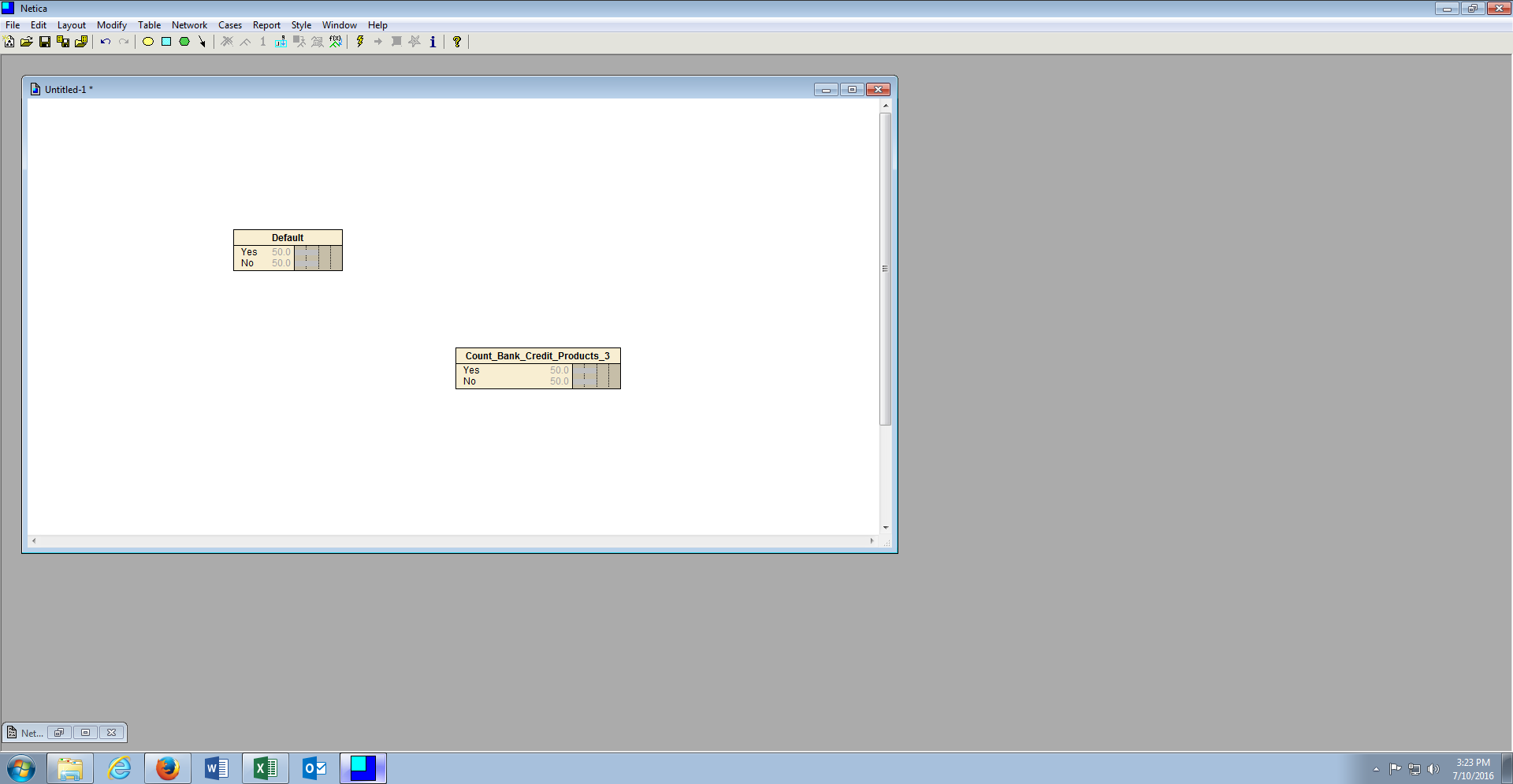

Repeat the process for each node on the canvas, for each possible state for that node:

---
